Description

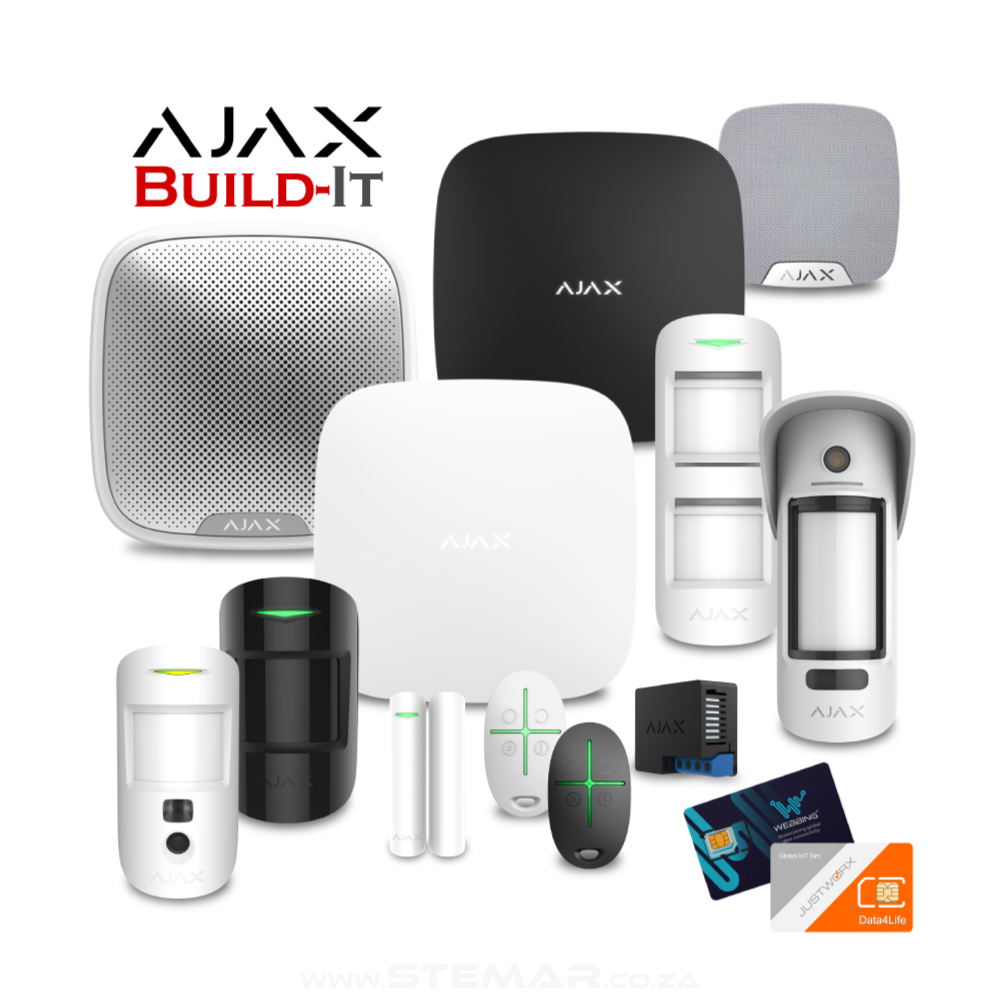

Ajax Hub 2 (4G) Build-It Bundle

Ajax Hub 2 (4G) is smart, tamperproof and ready to work out the box. It set up is using the Ajax mobile app for Android and iOS devices and includes a power supply, battery backup, Ethernet port and two LTE SIM slots all smartly integrated into the compact control panel enclosure.

Setting up the system is a breeze. Simply connect the hub to power and internet, scan the hub and device QR codes using the Ajax mobile app and the system ready to use.

Build your own system in options of White and Black with Ajax Hub 2 (4G) Build-It Bundle. Select a minimum of 7 devices (including the Hub) to checkout with discounted pricing.

About Ajax Hub 2 (4G)

Specifications:

100 Zones for Ajax wireless and/or third party wired devices (MultiTransmitter required for wired devices)
50 Users – admin settings to control user permissions
50 rooms / areas
9 groups (partitions)
Live stream up to 25x IP cameras / DVR’s

Built-in:

Battery backup for up to 16 hours
Transformer (power cable included)
SIM Slots: 2x 2G/3G/LTE SIM Slots
Ethernet – IP Internet Module (cable included)

Supports:

All Ajax devices
5x ReX 1 & 2 Range Extenders
32x Scenarios
iOS and Android mobile applications

Features:

Geolocation
Authentication to prevent forgery
Jamming detection and communication channels encryption
Tamper alarm
Easy installation and setup

Always connected — via cable and cellular networks

Communication with the outside world is critical for the security system control panel. Its reliability and stability guarantee timely alarm transmission to the armed response companies and users.

Hub 2 (4G) can be simultaneously connected to three Internet service providers — via Ethernet cable and 2G, 3G and LTE 2 cellular networks. The automatic switching between channels takes seconds.

Controlled with apps

Ajax refrained from control buttons on the control panel body and archaic interfaces, apps are more convenient and reliable. They connect to a hub via a secure channel through the Ajax Cloud server located in several AWS data centres.

Apps allow system users with administrator rights to manage the security of the facility, change settings of the hub and the devices connected to it, create scenarios and monitor events from a smartphone or a PC, on site and remotely.

Ajax Mobile App Download:

Hub control panels are set up using the Ajax mobile app for Android and iOS devices. Wireless devices are paired to the Hub by scanning their QR Codes, no programming or technical skills required!!

Alarm photo verification in 9 seconds

Hub 2 Plus works with MotionCam and MotionCam Outdoor motion detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety, and security companies — from false calls of patrols.

1. Motion detected
2. Alarm triggered
3. Evidence captured

Automates Security

Create scenarios to minimise the impact of human factor on security. Scenarios enables the Hub to arm and disarm the complete system or groups by schedule, activate smoke machines when device is triggered or shut off water when a leak is detected. Control lights, electric locks, roller shutters, and garage doors by arming/disarming, button press or alarm detection.

Future-proof

Hub 2 runs OS Malevich — a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses, and protected from cyberattacks. Modular architecture simplifies the constant upgrading of OS Malevich.

Hub receives new features several times a year with over-the-air updates. The update process is automatic and takes minutes when the security system is disarmed. The hardware configuration will allow Hub 2 to evolve and remain relevant for years to come.

Armed Response Linkup

Via Cloud – There are hundreds of South African armed response companies that have the Ajax software installed on their monitoring systems. You will find a list of these companies on the Ajax mobile app. If the company of your choice is not on the list, Contact Us with the Company Name, Contact Person and Location so that we can refer them to our Ajax support team.

Via Ajax Hardware – Should your armed response company not be Ajax ready, an Ajax vhfBridge is can be used to connect to their radio transmitter. Alternatively two Ajax Relays can be connected, one for alarm and one for panic.

Ajax Hub PSU (Power Supply Unit):

The Ajax Hub comes with an integrated 220V power supply unit (PSU) and a built-in backup battery. For installations in environments without access to 220V power such as yachts, caravans, construction sites or remote properties, the 220V PSU can be conveniently replaced with the Ajax 12/24V PSU. This alternative is ideal for setups requiring a low-voltage power feed or integration with a solar power system.

Justworx IoT SIM Card for Backup to Internet Failure

Ajax Hubs rely on the internet for remote communication and includes SIM card slots for backup to internet failure. Justworx are non-steering SIM cards that automatically connect to the strongest Vodacom or MTN network in your area to ensure the Hub remains connected to Ajax cloud. Only 1x Justworx SIM card is required and includes Data for up to 30 years (dependent on selected package).

No Monthly Fees | No Subscriptions | No Recharge Fees | Data Never Expires

Ajax Hub 2 (4G) User Manual and Tech Specs

Ajax Hub 2 (4G) User Manual

Ajax Hub 2 (4G) Tech Specs

Ajax Hub 2 (4G) Technical Data
