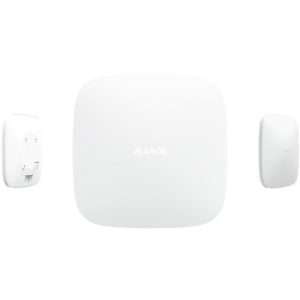

Ajax Hub 2 Plus

R7,891.00 R7,262.74 Incl. VAT

The Hub 2 Plus is the latest and the most efficient Ajax control panel. It has a processor that is 4.5 times faster than Hub 2 and 8 times more flash memory. This hardware configuration allows the device to work for years and remain relevant.

Ajax Hub requires the internet to communicate remotely. Use built-in WiFi or the supplied cable to connect to your router and insert a SIM card for backup in the event of internet failure. We supply Free Justworx SIM cards, no monthly payments and zero fees.

Not sure which Hub to choose, click HERE to learn more

Includes Free multi-network Justworx IoT SIM card with every Hub purchased:

  • Justorx SIM Card incl. DATA for up to 30 years free with every Hub purchased
  • No monthly fees, No subscriptions

Justworx IoT Logo with tagline

Installations currently offered in JHB, PTA, Western Cape and Durban



Clear

Description

Ajax Hub 2 Plus

Ajax Hub 2 Plus control panel is ready to work out the box and is compatible with Ajax MotionCam. Add up to 200 wireless Ajax devices, 5x ReX range extenders with 64 scenarios and 200 users. Create up to 25 partitions (groups) that can be independently controlled and limit individual users to a single partition or more, e.g. staff and tenants. Alarm and Panic activations are instantly delivered to your mobile device along with your inner circle as well as armed response.

Ajax Hub 2 Plus

Future-proof

Hub 2 Plus runs on OS Malevich, a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses, and protected from cyberattacks.

Modular architecture simplifies the constant upgrading of OS Malevich. The system gets new features several times a year via over-the-air software updates. The process doesn’t involve engineers or users and takes minutes to implement — only when the security system is disarmed.

Hub 2 Plus is the most efficient Ajax control panel. It has a processor that is 4.5 times faster than Hub 2 and 8 times more flash memory. This hardware configuration allows the device to work for years and remain relevant.

Instant communication with users and alarm monitoring company

Communication with the outer world is critical for alarm control panels as its reliability guarantees prompt delivery of alarm signals. The new Ajax control panel makes external communication stability absolute.

Hub 2 Plus is equipped with a communicator that features 4 independent channels including LTE. This configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up. Switching between channels happens seamlessly in seconds.

Automated security

Hub 2 Plus supports 64 scenarios that minimize human impact on the security of a location. It can automatically arm and disarm the entire security system or certain groups by schedule. Moreover, it can instantly activate a smoke security machine in case of intrusion, cut power supply and turn on emergency lighting in case of fire, or cut water in case of leakage. Using automation devices, Hub 2 Plus can control lights, electric locks, and roller shutters. Scenarios can be activated in response to security mode changes, alarm triggerings, or Button commands.
  • Flood prevention system
  • Automatic doors and roller shutters
  • Spotlighting the trespassers

Protection of large premises with complex internal organization

Business centers, factories, and multi-story villas with outbuildings — Hub 2 Plus is ready to secure even the most complicated properties. The new hub controls up to 200 devices. Its radio signal range can reach up to 2,000 meters while the maximum radio network coverage can reach 35 km2. Hub 2 Plus can manage 25 security groups with a total number of 200 users. This allows security personnel to divide large premises into zones and clearly organize staff access.
  • 200 Devices in the system
  • 200 Users
  • 25x Security Groups
  • Live stream 100x IP Cameras / DVR’s
  • 35km² Maximum radio range coverage using 5x ReX extenders (open areas)

Seamless security system upgrade

To simplify the process of upgrading installed hubs, we’ve provided the possibility of automatic data transfer. The import feature allows engineers to migrate settings, connected devices, groups, scenarios, and users from an old hub to Hub 2 Plus. In less than 15 minutes.

Ajax Hub 2 Plus Technical Specifications

Classification Security system control panel with four in-built channels for communication and support of detectors with photo cameras
Installation Indoors
Connected devices 200
Video surveillance support Up to 100 cameras or DVR’s
Users 200
Rooms 50
Security Groups / Partitions 25
Connected ReX 5
Scenarios 64
MotionCam detectors support +
Apps iOS 9.1 and later
Android 4.4 and later
Communication Channels 2G (GSM900/DCS1800 (B3/B8))
3G (WCDMA 850/900/2100 (B1/B5/B8)
LTE (FDD B1/B3/B5/B7/B8/B20)
WiFi (802.11 b/g/n)
Ethernet
Alarm signals Delivery time: 0.15sec
Notification Types: SMS, Call, Push Notification
Switching between 2G, 3G, LTE Instant
Switching between the SIM-Cards 4 Minutes
CMS connectivity Contact ID, SIA * Photo verification integrated in Manitou, ABsistemDC (NG) and SBN
The speed of alarm delivery to the CMS Instant
Operating system OS Malevich
Power supply 110-240v from mains
Built-in backup battery: Li-Ion 2a/h
Up to 15 hours of autonomous work when Ethernet or WiFi channels are disabled
Energy consumption form mains – 10W
Jeweller radio technology Communication range with detectors: up to 2,00m in an open space
Two-way communication between devices
Operating frequencies: 686.0-868.6MHz
Self-adjusting RF output power: up to 25mW
Black encryption based on AES algorithm
Detector polling period: 12-300 s
Frequency hopping
Wings radio technology Transmission of visual confirmations
Delivery verification of packages
Operating temperature range From -10° to +40°
Anti-sabotage Forgery prevention
Notifications about jamming
Tamper to detect back lid opening and unmounting from SmartBracket
Remote set up and testing +
Size 163 x 163 x36mm
Weight 351g
Warranty Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries
Complete Set Ajax Hub 2 Plus intelligent control panel
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
User guide



Armed Response Linkup:
There are hundreds of South African armed response companies that have the Ajax CMS software loaded on their monitoring systems. You will find a list of these companies on the Ajax mobile app. If the company of your choice is not on the list, Contact Us and we will make the necessary arrangements. If their systems are not compatible, Ajax wireless relays can be used to connect to their radio transmitters
