Description

Ajax CCTV Build-It Bundle

Build your own surveillance system with our Ajax CCTV Build-It Bundle all in one convenient, customisable package at discounted pricing.

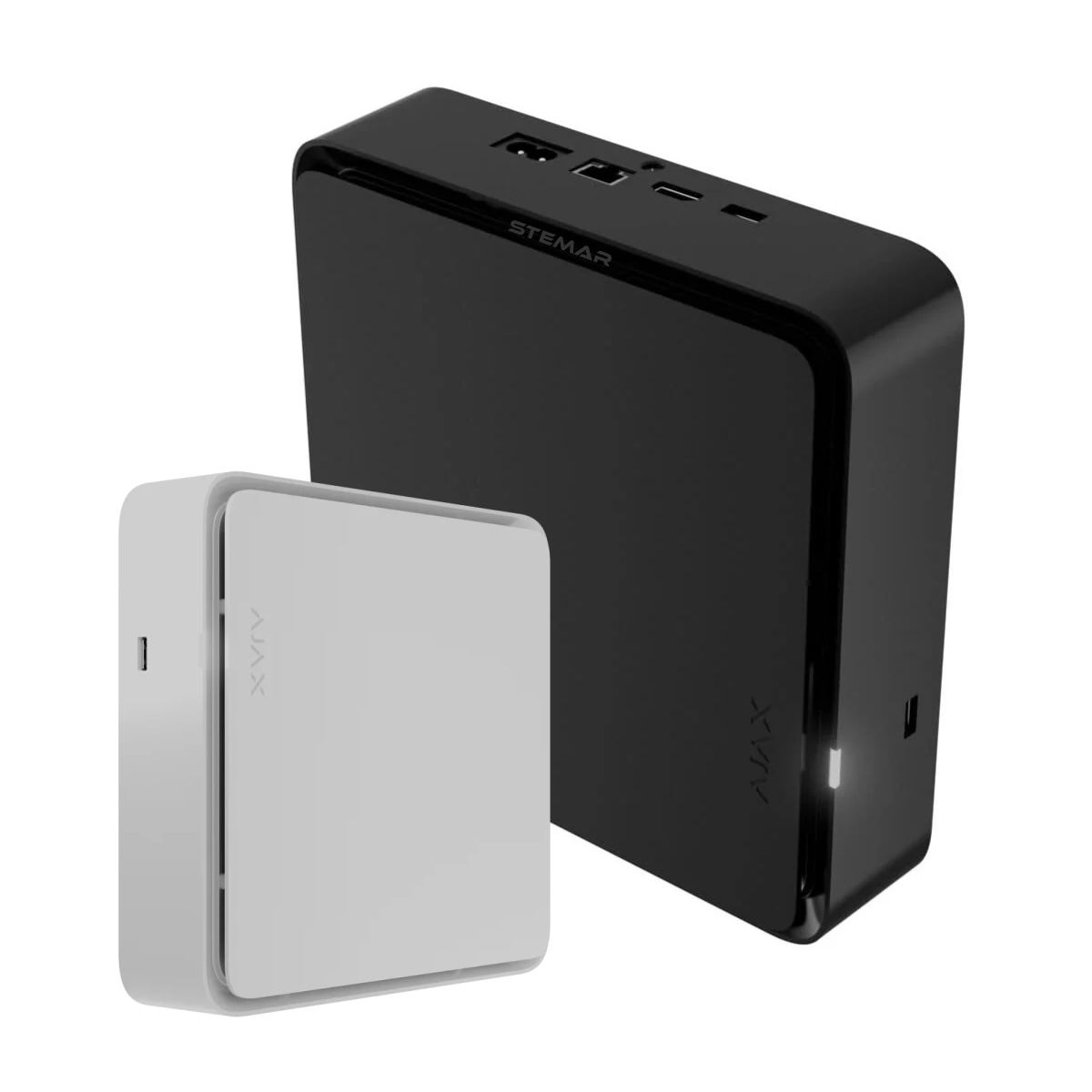

Ajax NVR (options of 8 and 16 Channel)

The Ajax NVR (Network Video Recorder) is a cutting-edge solution that seamlessly combines security surveillance and intrusion alarms, delivering unparalleled system response speed and functionality. Available in both 8-channel and 16-channel options, the NVR integrates with the Ajax system to provide instant access to video of detection events, all through a single, easy-to-use app.

8 and 16 Channel NVR options

WD Purple Surveillance Hard Drive: 2-10TB options

Ajax NVR Key Features:

Seamless Integration with Ajax:

The Ajax NVR works in harmony with Ajax alarm and security systems, ensuring smooth collaboration between video surveillance and intrusion alarms. This synergy allows for real-time event monitoring and immediate access to relevant video footage, enabling you to manage your entire security system through the Ajax app.

Instant Event Notifications:

Receive instant notifications via the Ajax app, complete with a video clip that directs you to the camera capturing the event. Whether it’s detecting humans, animals, vehicles, or general motion, you can assess the situation in real-time.

Customisable Scenarios:

Configure scenarios to automatically activate specific cameras based on Ajax detectors, ensuring you capture the most important moments.

Advanced Motion Detection:

Customise specific zones within the camera’s field of view to trigger recordings only when movement occurs in selected areas. This feature helps to avoid unnecessary recordings of irrelevant motion, such as swaying vegetation or distant passers-by.

Two Models:

Choose between the 8-channel NVR (for up to 8 cameras) or the 16-channel version (for up to 16 cameras). For larger surveillance systems, multiple NVRs can be added—up to 14 NVRs per account—allowing you to manage up to 220 cameras across a single system. This scalability makes the Ajax NVR ideal for both residential and commercial use.

Video Storage and Archiving:

The NVR supports internal surveillance hard drives of up to 16TB, providing ample space for long-term video retention. Customisable video walls allow for streamlined monitoring, but please note that the hard drive is not included in the box.

Reliable PoE Connectivity:

Ajax cameras connect via PoE (Power over Ethernet) cables, offering a faster and more reliable connection than wireless options. Simply connect a Cat5 cable with RJ45 connectors between the camera and a PoE switch, which then connects to the Ajax NVR. For continuous operation during power outages, it’s recommended to use a UPS (uninterruptible power supply), as the NVR does not have a built-in battery.

Fanless Design for Silent Operation:

The fanless design ensures quiet operation, making the NVR suitable for indoor environments without causing noise disturbances.

Standalone Operation:

The Ajax NVR operates independently of the Ajax Hub, meaning you don’t need additional hardware to run the system via the Ajax app.

Ajax Cameras (wired PoE)

Ajax IP cameras uses artificial intelligence (AI) for object detection. Its algorithms can detect moving objects and distinguish between people, animals or vehicles. Users can view archived and online videos in Ajax applications. To save the CCTV captured footage, insert a MicroSD card into the camera or connect the camera to Ajax NVR using an installed hard drive.

The device features an intelligent IR backlight that enables high-quality recording even in low-light conditions. The camera automatically adjusts the backlight intensity in real time to avoid overexposure, thereby enabling clear visibility of objects that are either too far away or too close to the camera in low-light conditions.

Three Camera models are available with various Resolution & Lens options as follows:

DomeCam Mini – 5MP / 8MP | 2.8mm / 4mm Lens options

BulletCam – 5MP / 8MP | 2.8mm / 4mm Lens options

TurretCam – 5MP / 8MP | 2.8mm / 4mm Lens options

Key Features of Ajax CCTV Cameras

• Resolution: 5MP (2880 × 1620 px) | 8MP (3840 × 2160 px)
• Viewing Angle – 2.8mm Lens: 100°-110° | 4mm Lens: 75° to 85°
• Type: Wired PoE (Power over Ethernet) camera
• AI Object Detection: Detects and differentiates between humans, animals and vehicles.
• Intelligent Infrared Backlight: IR illumination up to 35m with real-time automatic intensity adjustment for clear recording in low-light conditions.
• Video Storage Options: Supports microSD cards up to 256GB or NVR (Network Video Recorder) for video archiving (storage not included).
• Real-Time & Archived Video: Watch live video and zoom in; access recorded footage based on event chronology.
• Customisable Motion Detection Zones: Focus on key areas, reducing false alarms.
• Video Scenarios: Automatically activate cameras via Ajax detectors; video sent directly to the app.
• Video Wall: Display and manage multiple cameras, switch views, and search by camera name.
• Encrypted Communication: Uses JetSparrow encrypted peer-to-peer protocol.
• Microphone: G722 Codec
• Power Supply: 12V ⎓ with PoE (Power over Ethernet)
• Weatherproof: IP65-rated protection; operates in temperatures from −25°C to +40°C.
• Privacy Settings: Configure access for users and security companies to view video feeds.
• Compact Design: Dimensions 113 × 60 mm, weight 360g.
