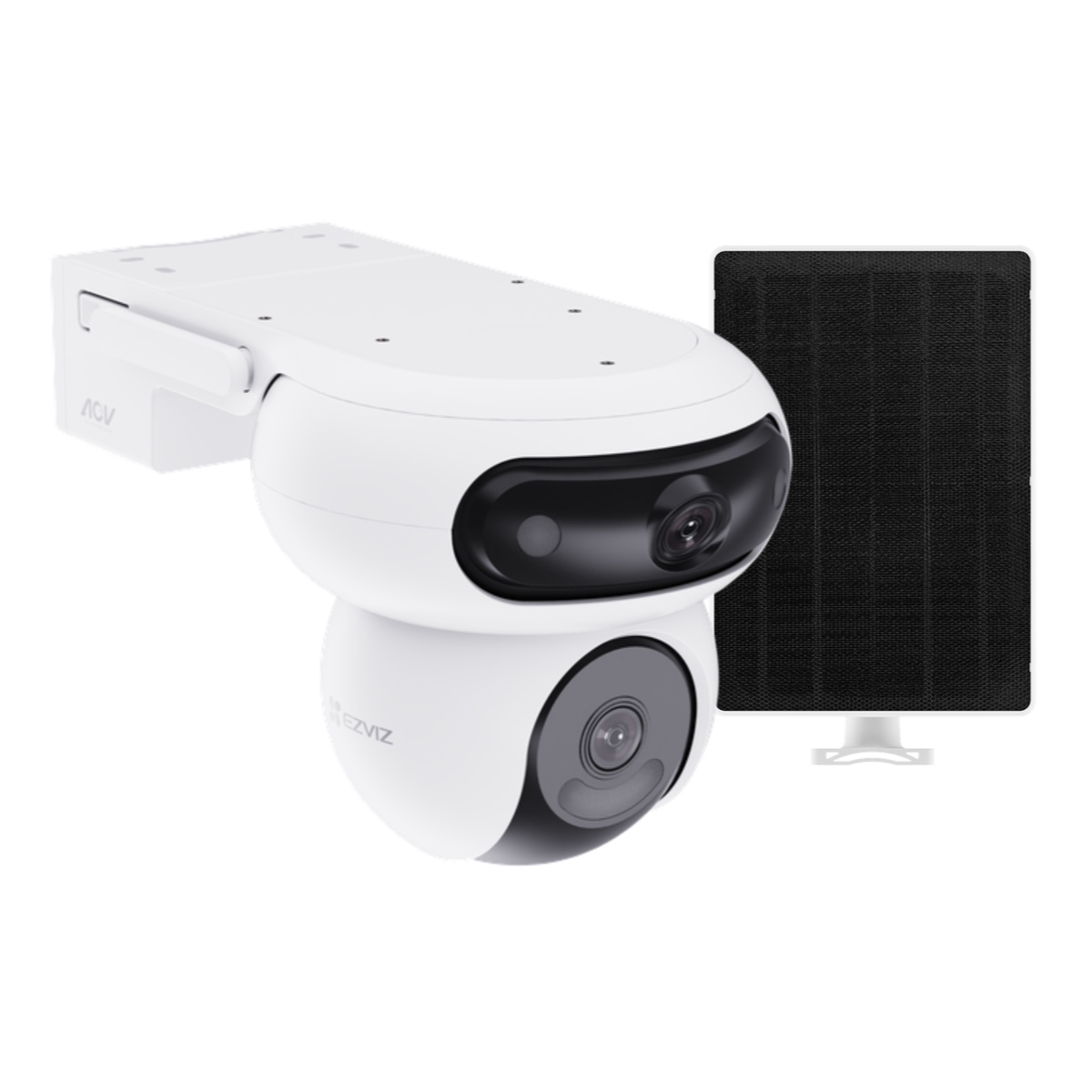

EZVIZ HB90 Dual 2K+ AOV WiFi Camera Solar Bundle (4MP)
Original price was: R3,528.00.R3,245.00Current price is: R3,245.00. Incl. VAT
- High-Resolution Video: 4MP|2K+ (2560 × 1440) with H.265/H.264 compression
- Smart Detection: AI-powered human & vehicle shape recognition with customised alerts and auto-tracking
- Network: Operates on 2.4 GHz Wi-Fi with Bluetooth pairing
- Convenience & Security: Two-way talk, anti-flicker, dual-stream, heartbeat, password protection, watermark
- Power: 10,400 mAh rechargeable battery including EZVIZ solar panel for continuous charging
- Storage: Supports MicroSD up to 512 GB and EZVIZ CloudPlay (subscription)
- Outdoor Ready: IP65 weatherproof for all-weather performance
- Dual-Lens Design:
Top lens: Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54°
Bottom lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
- Flexible Coverage:
PT Angle – Top Lens: Pan: 220°, Tilt: 10°
Bottom Lens: Pan: 324°, Tilt: 90°
Description
EZVIZ HB90 Dual 2K+ AOV WiFi Camera Solar Bundle (4MP)

Incredible protection, always in action
The innovative HB90 Dual Kit takes a leap forward to solve the battery anxiety and installation constraints by using solar power while cleverly balancing high security requirements and power consumption with EZVIZ’s groundbreaking AOV technology. It’s also an exciting addition to EZVIZ‘s Dual-Lens camera series, where homeowners can trust its performance to secure two areas at once and rely on it to detect, track and record important activities.

EZVIZ HB90 Dual 2K+ All Day Recording

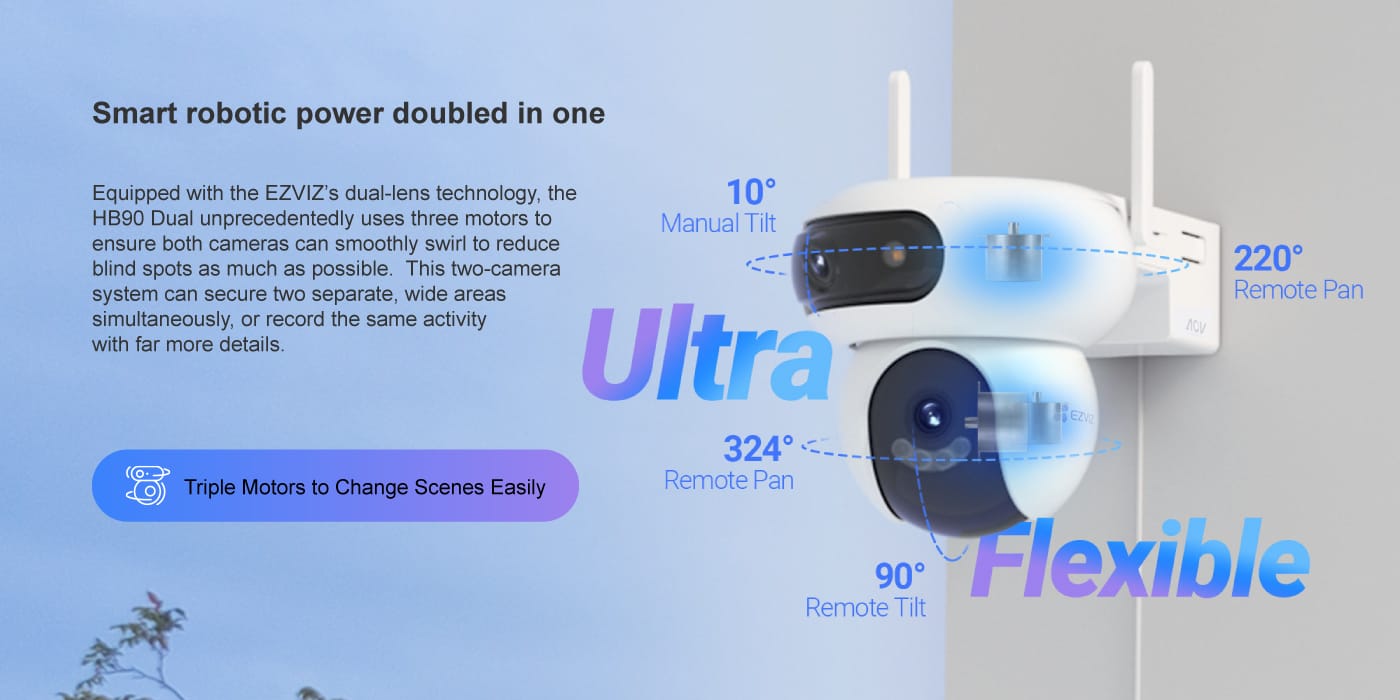

Smart robotic power doubled in one
Equipped with the EZVIZ’s dual-lens technology, the HB90 Dual unprecedentedly uses three motors to ensure both cameras can smoothly swirl to reduce blind spots as much as possible. This two-camera system can secure two separate, wide areas simultaneously, or record the same activity with far more details.

Tap to control, separately or smartly together
Whenever you want to start a manual patrol, set up new viewing angles, or want some specific close-up details when viewing the big picture, just make few taps on the EZVIZ App to control the dual lenses.

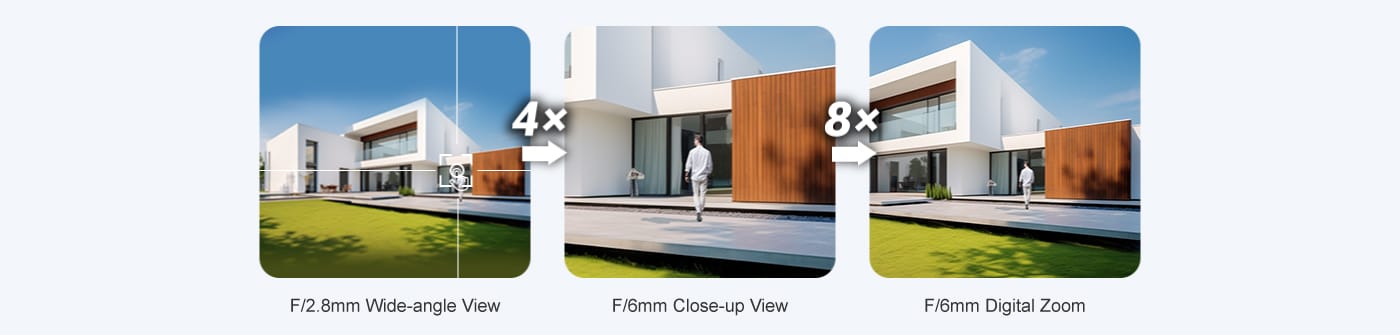

See everything that matters, from every angle to every detail
Equipped with two lenses in sharp 2K+ resolution, the HB90 Dual can capture wide-angle views and detailed shots with only one device. Now you no longer have to make a difficult choice between monitoring your entrance or backyard – the two lenses can turn to different perspectives at the same time.

Click to check, with both wide and close-up views
Understand the whole, big picture while paying attention to the important details, by using the EZVIZ App. You can tap the area of interest on the wide-angle viewing box, so a close-up view will be shown on the side at the same time.

Co-action technology ready for a complex activity
Unlike most dual-lens cameras in the market that only stitch the views of two lenses, the HB90 Dual is smart enough to complete a complicated detection activity by involving two lenses at the same time.

Time for battery-powered all-day recording
Unlike most battery cameras on the market, which have trouble detecting and recording videos due to short battery life and non-smart sensors, the camera is equipped with EZVIZ’s groundbreaking AOV technology to enable all-day recording while ensuring a long standby time with a much greater detection distance.

01 Always records, scenes or events
When on the AOV mode, in addition to normal detection-triggered videos, the HB90x Dual 4G camera can capture images at pre-set time intervals⁵ and process them to create a smooth time-lapse video showing the changes over time, even when there is no activity. You can now obtain all-day recording on a battery-powered camera without having to plug it into a power outlet.

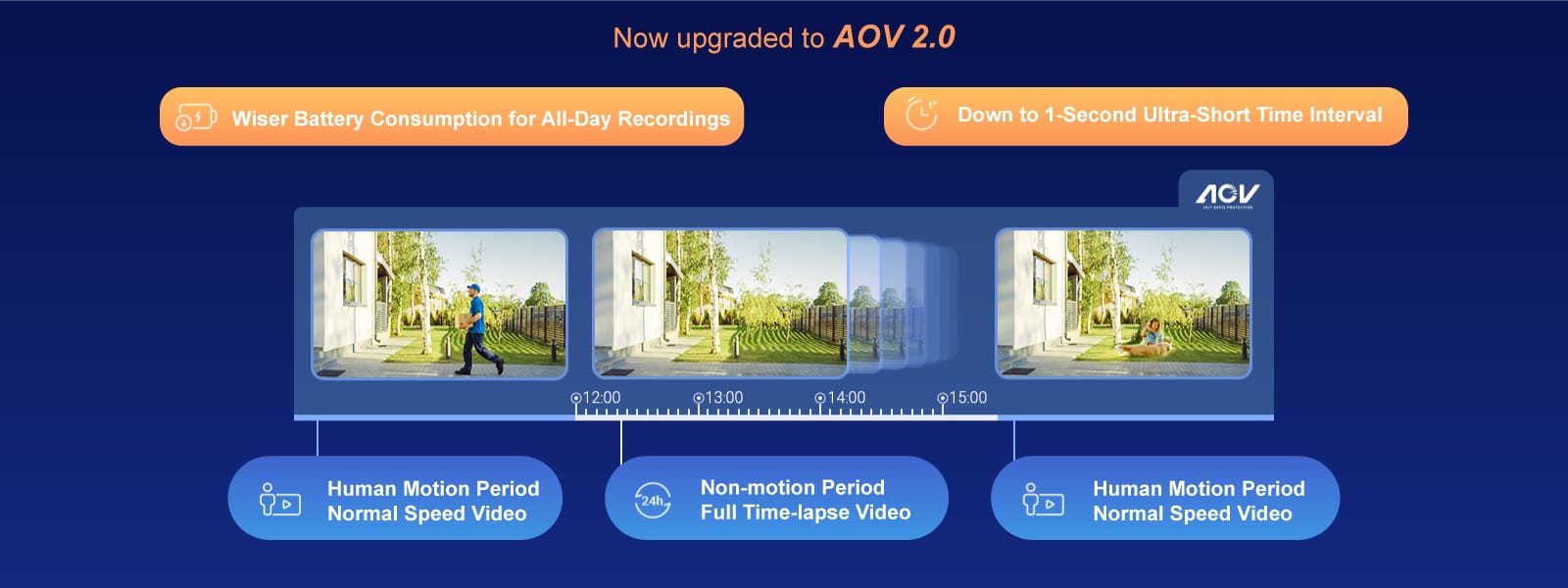

AOV 2.0
- Wiser Battery Consumption for All-Day Recordings
- Down to 1-Second Ultra-Short Time Interval

02 Always protects, far or near
Unlike other battery cameras that heavily rely on PIR sensors to capture only nearby activities, this camera can detect an approaching person or vehicle at a much greater distance. If a person or vehicle appears, it will immediately notice that and inform you straight away.

Non-stop solar power, set-and-forget⁶
The HB90 Dual is serious about getting hassle-free. Install its included solar panel at a sunny spot, and connect it to the camera, so the system will take free, green energy to keep the watch around the clock, all by itself. With just two hours of direct sunlight each day, you can enjoy uninterrupted monitoring near your premises.

Smarter alerts on coming and going
Whenever you want to start a manual patrol, set up new viewing angles, or want some specific close-up details when viewing the big picture, just make few taps on the EZVIZ App to control the dual lenses.
- AI-Powered Human Shape Detection
(On both lenses) - AI-Powered Vehicle Shape Detection
(On both lenses) - No Subscription Fee

Night is now bright and colourful
Blurred and pixelated night vision is now a thing of the past. The improved lens with the large F1.2 aperture captures more light and thus enables long-range colour night vision of up to 35 meters.⁷ What’s better, you can choose between the colour mode or the infrared mode as you’d like.

Further enhanced image quality at night, despite the complex environment
Wherever you install the HB90 Dual camera, it manages to comprehend the surrounding objects to automatically create an evenly exposed, clear image, even in the dark. Users can choose to enable the “Balanced Image Exposure” option via the EZVIZ App at any time.

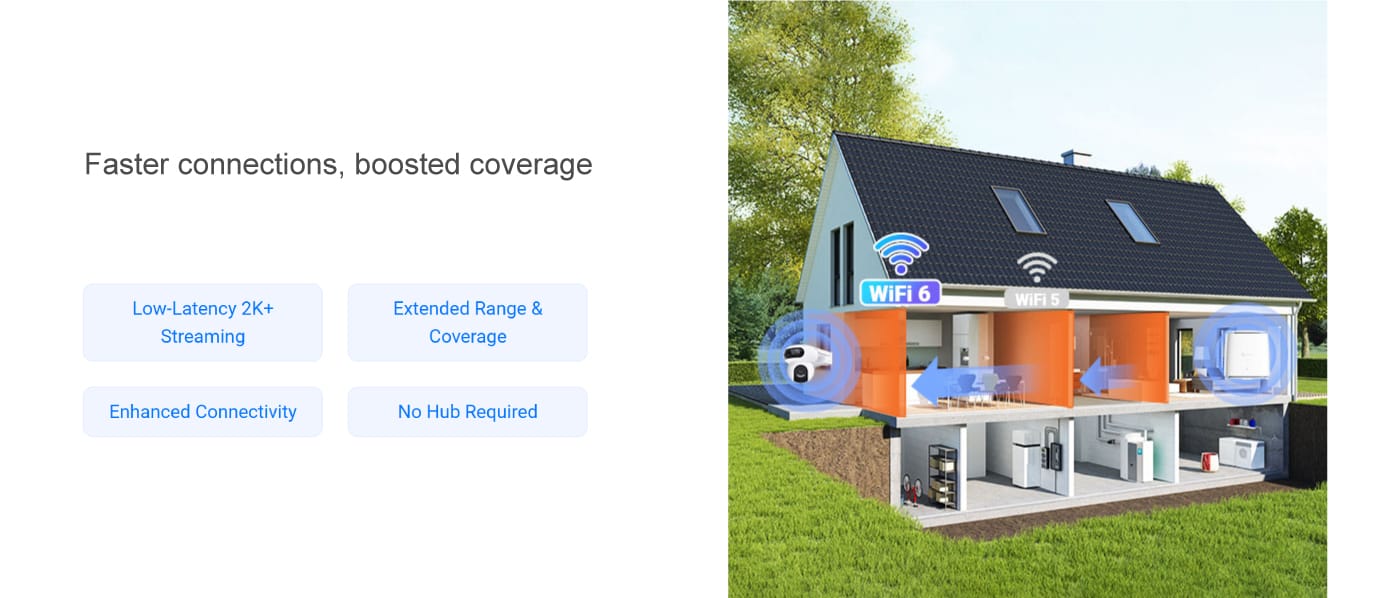

Faster connections, boosted coverage
Being Wi-Fi 6-enabled means that the HB90 Dual is far less likely to face network challenges when operating outside your house. In addition to enhanced Wi-Fi connection stability, you can enjoy smoother 2K+ video streaming and faster camera response when controlling it remotely.


A cleaner planet, with an EZVIZ Green product
EZVIZ design products with sustainability in mind, building a smart home that’s ready for the future and responsible for the planet. By integrating the use of solar technology and planting forests, EZVIZ enable you to live a smart lifestyle with less carbon emissions.


What’s in the Box
- EZVIZ HB90 Dual 2K+ WIFI Camera (4MP)
- 8W Solar Panel
- Drilling Template
- Adjustable Mounting Bracket
- Screw Kit × 2
- Power Cable
- Regulatory Information × 3
- Quick Start Guide × 2
Supports MicroSD Card up to 512 GB (Sold Separately)
1 The inclusion of the supporting solar panel in the HB90 Dual is intended to provide an additional power source for the main device, helping to extend the battery life of the camera to reduce the frequency of recharging. To prolong the battery life, we recommend you to enable the AOV mode for wiser battery consumption. Please note that the HB90 Dual only supports working with the EZVIZ Solar Panels that use Type-C charging cables.
2 Amazon Alexa and Google Assistant are not available in certain languages and countries.
3 Local storage cards must be purchased separately. Cloud storage service is only available in certain markets. Please verify availability before making a purchase.
4 When the AOV mode is enabled, according to EZVIZ Lab’s test results under standard conditions, the HB90 Dual is able to detect movements at a distance of up to 25 meters during the day, and up to 12 meters during the nighttime. The actual detection range may differ due to other environmental factors.
5 To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
6 Data from EZVIZ Lab’s test results, under the following standard condition: AM=1.5 , 25°C, 1000W/m², SMQ. The data is obtained based on the camera set on AOV mode and with the AOV interval set as AUTO. The actual charging efficiency may vary depending on sunlight intensity and other environmental factors, while the actual hours of camera use may also differ due to the frequency of camera activities and other environmental factors.
7 Data from EZVIZ Lab’s test results under standard conditions. The distance figures are obtained based on the camera’s four spotlights or four IR lights being switched on and pointing in the same direction. Actual distance may vary depending on battery level and other environmental factors.
8 Data from EZVIZ Lab’s test results in open environment. Will vary with the Wi-Fi frequency, camera location, the transfer technology, and other environmental factors.
Additional information
| Weight | 1930 g |
|---|---|
| Dimensions | 300 × 204 × 175 mm |
Technical Specifications

| Specifications | |
|---|---|
| Model | CS-HB90/SP-R100(4MP+4MP) |
| Camera | |
| Image Sensor | 1/3” 4-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
| PT Angle | Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90° |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories) |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| Night Vision Distance | 35 m |
| Video & Audio | |
| Max Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Max. 15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; HD; Standard; Adaptive bit rate |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 2 Mbps (Total) |
| Network | |
| Bluetooth | Supports |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n , 802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK, WPA3-Personal |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing | AP pairing |
| Minimum Network Requirement | 4 Mbps |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing) |
| Battery Capacity | 10,400 mAh |
| IP Grade | IP65 |
| Power Supply | DC 5 V / 2 A (Adapter needs to be purchased separately) |
| Power Consumption | Max. 10 W |
| Specifications | |
| Model | CS-PSP8-R100-3M |
| Performance Parameter | |
| Power Voltage | 5.4 V ± 5% |
| Power Current | 1.48 A ± 5% |
| Open Circuit Voltage | 6.8 V ± 5% |
| Short Circuit Current | 1.64 A ± 5% |
| Max. Power | 8 W ± 5% |
| Interface | Type-C |
| Solar Cell Efficiency | 0.235 |
| Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Solar Cell Type | Monocrystalline solar cells |
| Power Cable Length | 3 meter |
| General | |
| Product Dimensions | HB90 Dual: 135 × 136.5 × 229.5 mm (5.31 × 5.374× 9.04 inch) Solar Panel 8W: 267.3 × 186.5 × 17.5 mm (10.45 × 7.49 × 0.61 inch) |
| Packaging Dimensions | 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch) |
| Net Weight | HB90 Dual: 890 g (31.39 oz) Solar Panel 8W: 428 g (15.09 oz) |
| Weight with Package | 1930 g (68.08 oz) |
| In the box | |
| In the box | – HB90 Dual Camera |
| – Solar Panel 8W | |
| – Drilling Template | |
| – Adjustable Mounting Bracket | |
| – Screw Kit × 2 | |
| – Power Cable | |
| – Regulatory Information × 3 | |
| – Quick Start Guide × 2 | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
