Description

Ajax Hub 2 (4G) Home Combo Kit

Ajax Hub 2 (4G) is smart, tamperproof and ready to work out the box. It set up is using the Ajax mobile app for Android and iOS devices and includes a power supply, battery, Ethernet port and two LTE SIM slots all smartly integrated into the compact control panel enclosure.

Setting up the system is a breeze. Simply connect the hub to power and internet, scan the hub and device QR codes using the Ajax mobile app and the system ready to use.

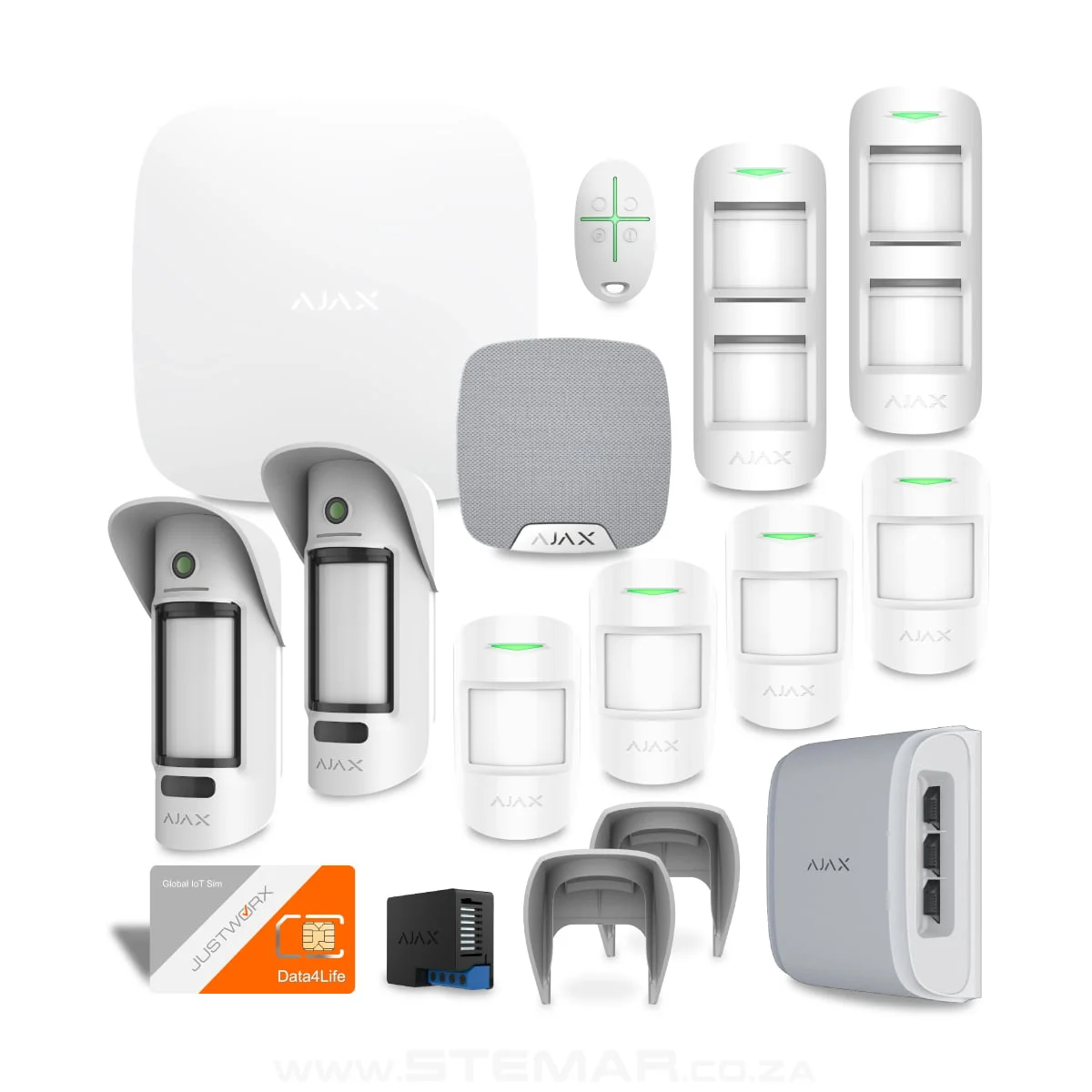

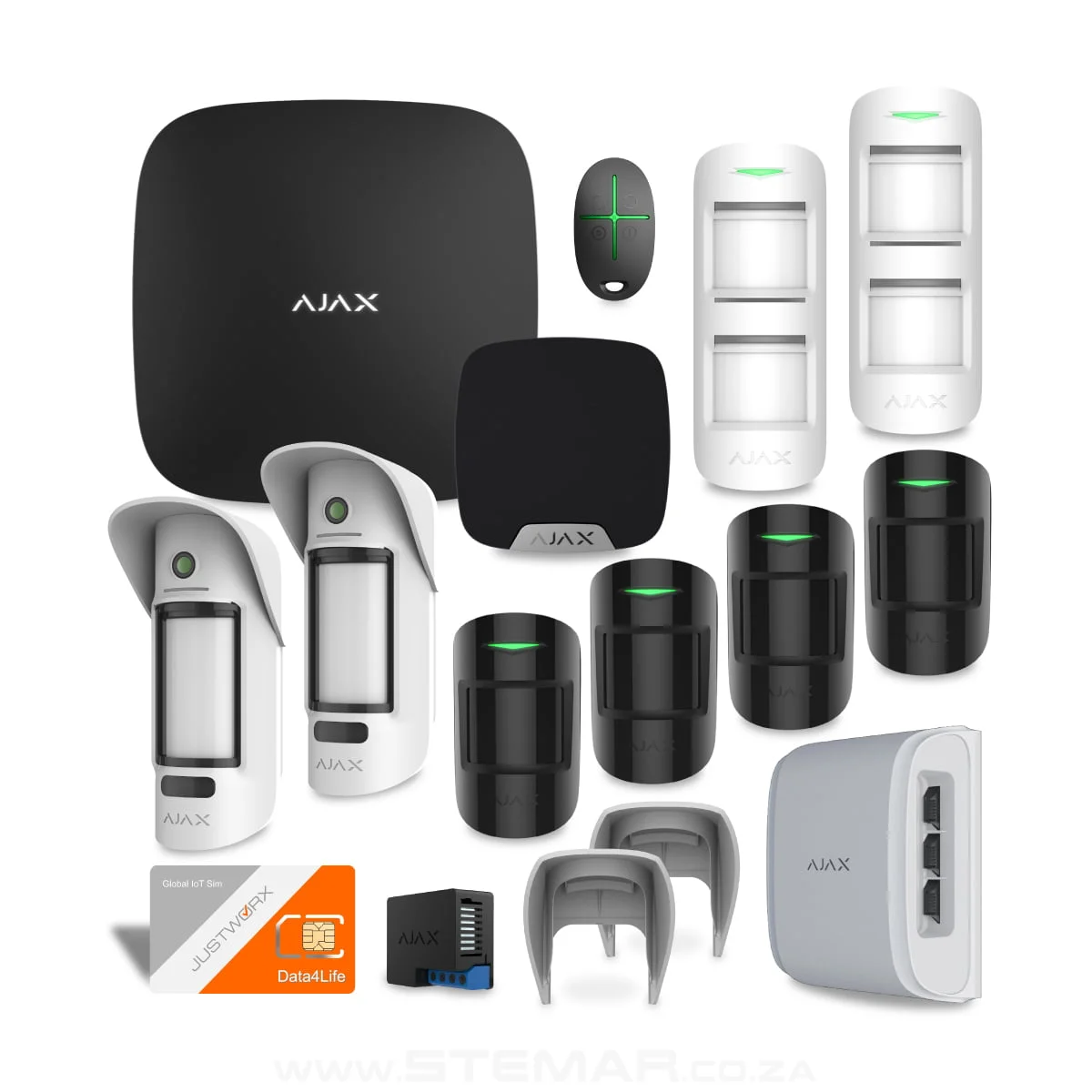

The Ajax Hub 2 (4G) Home Combo Kit is available in Black and White and includes the following:

• 1x Hub 2 (4G) – 100 Zone wireless alarm control panel
• 1x SpaceControl – Remote / Key fob
• 1x Relay (Low Voltage) – Automate and control gates / garage / low voltage devices from anywhere
• 4x MotionProtect – Wireless indoor pet friendly PIR
• 2x MotionProtect Outdoor – adjustable 3-15m x 90 degree motion detector
• 2x Hoods to prevent false alarms caused by rain / snow on masking sensors of MP Outdoor PIR
• 2x MotionCam Outdoor – Outdoor PIR with built-in camera that takes photos of the cause of the alarm
• 1x DualCurtain – Narrow curtain beam adjustable from 3-15m per side (total 30m) to protect doors and windows
• 1x HomeSiren – Wireless indoor siren – adjustable beeping noise to alert residents of an alarm / panic activation
• 1x Free Justworx SIM card for backup to internet failure (no subscriptions)
• Free Ajax Mobile App for Android and iOS devices

About Ajax Hub 2 (4G)

Specifications:

100 Zones for Ajax wireless and/or third party wired devices (MultiTransmitter required for wired devices)
50 Users – admin settings to control user permissions
50 rooms / areas
9 groups (partitions)
Live stream Ajax and 3rd Party CCTV Cameras / NVR’s

Built-in:

Battery backup for up to 16 hours
Transformer (power cable included)
SIM Slots: 2x 2G/3G/4G (LTE) SIM Slots
Ethernet Port – IP Internet Module (cable included)

Supports:

MotionCam
5x ReX 1 & 2 Range Extenders
32x Scenarios
iOS and Android mobile applications

Features:

Geolocation
Authentication to prevent forgery
Jamming detection and communication channels encryption
Tamper alarm
Easy installation and setup

Ajax Mobile App Download:

Hub control panels are set up using the Ajax mobile app for Android and iOS devices. Wireless devices are paired to the Hub by scanning their QR Codes, no programming or technical skills required!!

Seamless Setup:

It takes minutes to install Hub. Connect it to the Internet and plug the power cord. Then scan the QR code using Ajax app. In most cases, your devices won’t require any additional tuning. Hub begins to operate once online.

Alarm photo verification in 9 seconds

Hub 2 range works with MotionCam detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety and security companies — from false calls of patrols.

1. Motion detected
2. Alarm triggered
3. Evidence captured

Automates Security

Create scenarios to minimise the impact of human factor on security. Scenarios enables the Hub to arm and disarm the complete system or groups by schedule, activate smoke machines when device is triggered or shut off water when a leak is detected. Control lights, electric locks, roller shutters, and garage doors by arming/disarming, button press or alarm detection.

Future-proof

Hub 2 runs OS Malevich — a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses, and protected from cyberattacks. Modular architecture simplifies the constant upgrading of OS Malevich.

Hub receives new features several times a year with over-the-air updates. The update process is automatic and takes minutes when the security system is disarmed. The hardware configuration will allow Hub 2 to evolve and remain relevant for years to come.

Armed Response Linkup

Via Cloud – There are hundreds of South African armed response companies that have the Ajax software installed on their monitoring systems. You will find a list of these companies on the Ajax mobile app. If the company of your choice is not on the list, Contact Us with the Company Name, Contact Person and Location so that we can refer them to our Ajax support team.

Via Ajax Hardware – Should your armed response company not be Ajax ready, an Ajax vhfBridge is can be used to connect to their radio transmitter. Alternatively two Ajax Relays can be connected, one for alarm and one for panic.

Ajax Hub PSU (Power Supply Unit):

The Ajax Hub comes with an integrated 220V power supply unit (PSU) and a built-in backup battery. For installations in environments without access to 220V power such as yachts, caravans, construction sites or remote properties, the 220V PSU can be conveniently replaced with the Ajax 12/24V PSU. This alternative is ideal for setups requiring a low-voltage power feed or integration with a solar power system.

Justworx IoT SIM Card for Backup to Internet Failure

Ajax Hubs rely on the internet for remote communication and includes SIM card slots for backup to internet failure. Justworx are non-steering SIM cards that automatically connect to the strongest Vodacom or MTN network in your area to ensure the Hub remains connected to Ajax cloud. Only 1x Justworx SIM card is required and includes Data for up to 30 years (dependent on selected package).

No Monthly Fees | No Subscriptions | No Recharge Fees | Data Never Expires

Ajax Hub 2 (4G) User Manual and Tech Specs

Ajax Hub 2 (4G) User Manual

Ajax Hub 2 (4G) Tech Specs

Ajax Hub 2 (4G) Technical Data
