Description

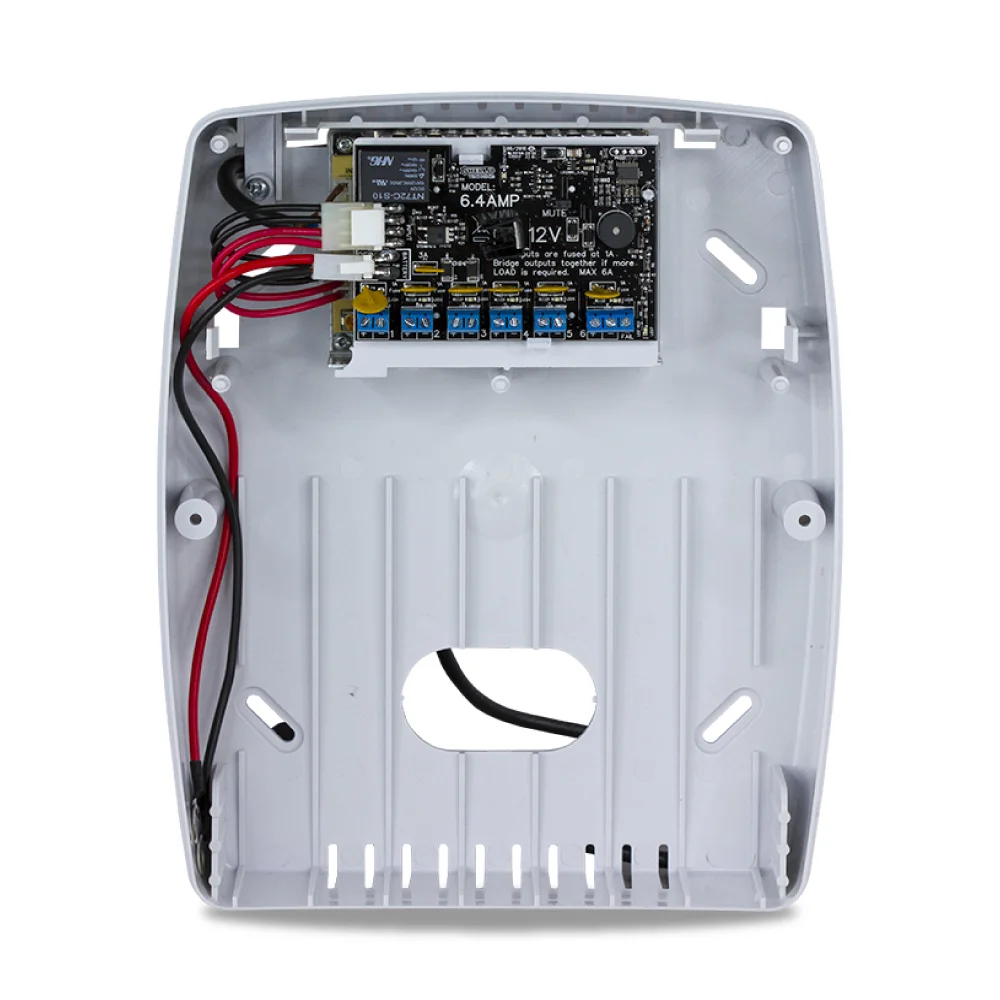

Sherlotronics 6.4A Battery Backup Power Supply

Applications:

• Alarm panel battery backup
• CCTV battery backup
• Backup power supply for door controller
• Maglock for an Access Control solution

Product Features

• Microprocessor Controlled charging output
• Low battery switches off at 10V DC
• Buzzer tones on battery low and AC Fail
• 6x Separate 1A Resettable Fuse protection on output
• Fuse protection on AC input
• ABS Plastic enclosure

LED Indication

• GREEN = Power is on & the unit is charging the battery at the correct voltage
• ORANGE = Power failure condition. The battery Voltage is above 12V & still good
• RED = Power failure condition. The battery Voltage is below 11.5V & is almost depleted
• OFF = Power failure condition. The battery Voltage is below 10V & the unit is switched off

Technical Specifications

• Model: 6.4Amp
• Housing and Material: White ABS
• Input Voltage Range: 110V ~ 230V AC 50HZ 0.5A
• Output Voltage: 13.8v ~ 14.2VDC
• Max Current output: 6.4A DC or 70 Watts
• Relay rating: 10A
• AC Fail output rating: 140mA Positive Switching
• Operating Temperature: -3°C to 60°C
• Dimensions: (L) 275 x (W) 225x (H) 97mm
• Gross Weight: 1.13Kg
