Description

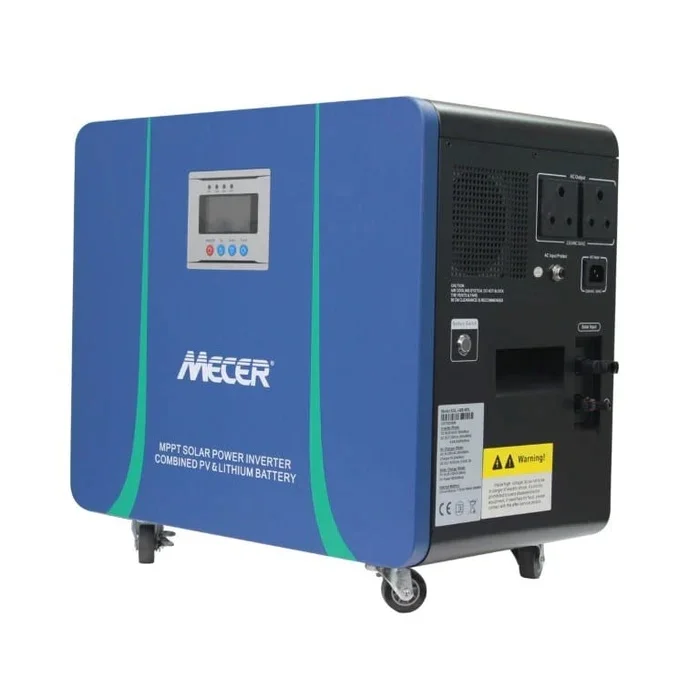

Mecer 2kVA Lithium Battery Trolley Inverter – Pure Sinewave / Built-in Solar Charger

Estimated runtimes:

Mecer 1kW 25.6V 50Ah Lithium Battery 820W MPPT

• 100W = 10h
• 150W = 6.6h
• 200W = 5h
• 400W = 2.5h
• 1000W = Max load

Technical Specification

• Rated Power – 2,000W / 2,000VA

Input

• Voltage range: 170 – 275V
• Mains charging current: 10A
• Frequency Range: 45-65Hz

Output

• Voltage: 230V AC
• Frequency: 50/60Hz
• Output wave form: Pure Sine Wave

Battery

• Battery Voltage: 25.6V DC
• Battery capacity: 1x 100Ah
• Battery cycle life: 2,000 Cycles @ DOD 80%

Solar Charger

• Solar Charge Type: MPPT
• Maximum PV Array Power: 840W
• Number of MPPTs: 1
• MPPT Range @ Operating Voltage: 35 – 100V DC
• Maximum Solar Charge Current: 30A
• Floating Charge Voltage: 28.4V DC

DC Output

• Low Voltage Recovery: 26.8V DC
• Low Voltage Protection: 22.4V DC
• 5V DC USB Output: 2 Pcs 5V DC, USB 2.0, Max 2A
• 12V DC Output Ports: 2 Pcs Max 2A

Physical

• Heat Dissipation / Cooling: Intelligent exhaust fan (Temperature controlled)
• Dimensions WxDxH: 480 x 192 x 410mm
• Package size WxDxH: 527 x 277 x 475mm
• Net Weight: 45 kg
• Gross Weight: 48 kg
